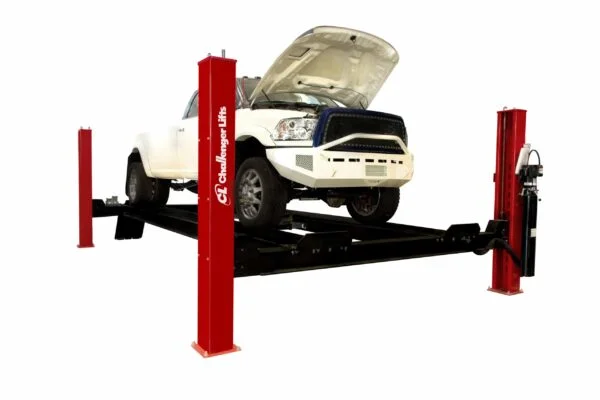

4030 Challenger 4 Post Car Lift
General Information
Challenger engineered our new 30,000 lb. capacity 4-post 4030 series lift with safety and durability in mind. We also integrated our time-proven cable-driven lift system with heavy-duty steel sheaves and cables for optimal performance. A single-point air actuated lock release makes these lifts simple to use. Choose between general service or alignment deck models as well as three lengths to fit your shop’s needs. We also offer a range of optional accessories.
ALI/ETL certified.
Power Unit
3HP, 208v-230v
Single Phase
Quality
30,000 lb capacity
ALI/ETL certified
Models
Standard and long
models available
Technology
Versymmetric® design
directSPOT™ technology
Product Information
- 30,000 lb. lift capacity
- Closed front design with 244.5″, 281″ or 317” max wheelbase
- 71.75” rise height provides maximum head room for working underneath vehicles
- Multiple locking positions for a variety of alignment and general service tasks
- Compatible with the industry’s latest camera imaging alignment systems
- Adjustable lock ladders allow for a versatile install with sensitivity to uneven floors
- Recessed turn plate pockets for easy drive-on (Alignment models only)
- Single-point air actuated lock release disengages column locks simultaneously
- Durable diamond-plate approach ramps for positive vehicle traction
- Built-in runway rail system provides versatility to add convenience options
like rolling jacks and oil drain pan (sold separately)
| Model Number | 4030SFX | 4030EFX | 4030XFX | 4030SAX | 4030EAX | 4030XAX |
|---|---|---|---|---|---|---|
| Lifting Capacity | 30,000 lbs. | 30,000 lbs. | 30,000 lbs. | 30,000 lbs. | 30,000 lbs. | 30,000 lbs. |
| Max. Wheelbase 1 | 244.5” | 281” | 317” | 244.5” | 281” | 317” |
| Rise Height | 71.75” | 71.75” | 71.75” | 71.75” | 71.75” | 71.75” |
| Overall Length | 308” | 344” | 380” | 308” | 344” | 380” |
| Overall Width | 172.75” | 172.75” | 172.75” | 172.75” | 172.75” | 172.75” |
| Inside Columns | 152” | 152” | 152” | 152” | 152” | 152” |
| Between Columns | 246.125” | 282.625” | 318.625” | 246.125” | 282.625” | 318.625” |
| Height of Columns | 92.25” | 92.25” | 92.25” | 92.25” | 92.25” | 92.25” |
| Height of Runways | 8.5” | 8.5” | 8.5” | 8.5” | 8.5” | 8.5” |
| Width of Runways | 24” | 24” | 24” | 24” | 24” | 24” |
| Width Between Runways | 46” – 52” | 46” – 52” | 46” – 52” | 46” – 52” | 46” – 52” | 46” – 52” |
| Air Supply Required | 90 – 120 psi | 90 – 120 psi | 90 – 120 psi | 90 – 120 psi | 90 – 120 psi | 90 – 120 psi |
| Motor / Voltage (Single Phase Std) | 3HP, 208v – 230v | 3HP, 208v – 230v | 3HP, 208v – 230v | 3HP, 208v – 230v | 3HP, 208v – 230v | 3HP, 208v – 230v |
| Speed of Rise | TBD | TBD | TBD | TBD | TBD | TBD |
| Max 2 Wheel Alignment | – | – | – | 219.5” | 256” | 292” |
| Min Recomm. Bay Size | 28’ x 17’ | 31’ x 17’ | 34’ x 17’ | 28’ x 17’ | 31’ x 17’ | 34’ x 17’ |
| ALI/ETL Certified | ? | ? | ? | ? | ? | ? |
| Colors Available | Red, Blue | Red, Blue | Red, Blue | Red, Blue | Red, Blue | Red, Blue |
Product Downloads:
| Alignment Accessories | |
| Part No. | Description |
| RJ15 | Air/Hydraulic Rolling Jack – 15,000 lb. capacity |
| 44AK30 | Internal air line kit for dual rolling jack operation |
| 10500HD | Turning radius gauges for alignment racks |
| 10500HD | Black Powder Coat Turning Radius Gauges for (4030 Alignment Racks) |
| Ramps | |
| Part No. | Description |
| 4030-RA | Drive-thru ramp assemby |
| 4030-RA6 | 6′ Drive-thru ramp assembly |
| Productivity Accessories | |
| Part No. | Description |
| 10310 | Air/electric workstation with filter/lubricator/regulator |
| 3PH4P | Power Unit Upgrade to 3-Phase |
No two days in your shop are the same. At Challenger, we understand that your success depends on having the flexibility to safely and efficiently handle whatever comes through those doors. When you choose between an asymmetric-only or a symmetric-only lift, you limit your bay.
VERSYMMETRIC ADVANTAGE
Asymmetric-only auto lifts have columns that are turned 30?. They safely lift vehicles with a forward center of gravity, such as front-wheel-drive cars and light trucks.
Symmetric-only auto lifts have columns that face each other. They safely lift vehicles with a center of gravity more symmetrically positioned. These include full-size pickup trucks, vans as well as large SUVs.

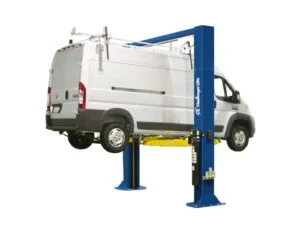

These 2-post lifts force a service facility to decide what types of vehicles are serviced most, limiting productivity and revenue potential. Turning away business because you do not have the right post lift to service a specific vehicle is detrimental to a shop’s bottom line.
With Challenger’s Versymmetric® lift technology, however, you can effectively do both, maximizing your productivity. Established in 1992, Versymmetric® technology is responsible for the original two-in-one automotive lift. Versymmetric® lifts safely accommodate vehicles with either a symmetric or an asymmetric center of gravity using heavy-duty columns and arms. With a Versymmetric lift, your business can reach its full yield potential.
We offer our Versymmetric® lifts in several configurations to meet your shop’s specific needs. A drive-on pad option offers the quickest vehicle spotting for express bays. At only 2.25″ tall, the pad is also a great option for low-profile and exotic vehicles. Quick Cycle™ models can lift in just 27 seconds as well as lower in only 17 seconds. Even adjustable height and width options are available, making the CL10V3 the best choice for any service professional. Expand your service potential with our most versatile, easy-to-operate lift.
