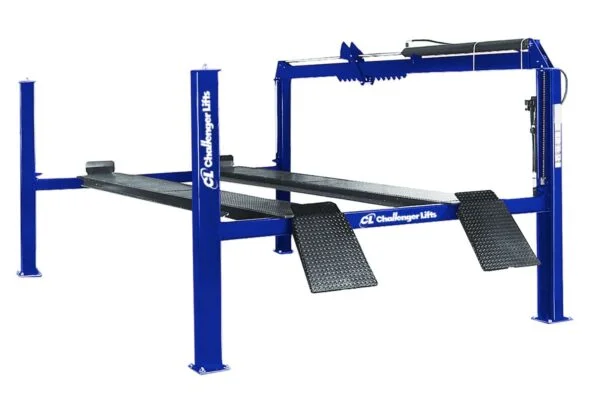

44018 Challenger 4 Post Car Lift

General Information

Challenger’s 18,000 lb. capacity medium-duty 4-post is great for shops servicing light- and medium-duty vehicles. The 18000 features leaf chains and sealed roller bearings. We offer general service or alignment models.  The alignment package includes two 9,000 lb. capacity rolling jacks and an internal airline kit for dual jack operation in addition to stainless steel turning radius gauges.

Power Unit

3HP, 208v-230v
Single Phase

Quality

18,000 lb capacity
Diamond plate ramps

Models

Standard and long
models available

Technology

Versymmetric® design
directSPOT™ technology

Product Information

  • 18,000 lb. lift capacity
  • 194” to 236” max wheelbase
  • Single-point air actuated lock release disengages column locks simultaneously (Alignment model only)
  • Diamond-plate approach ramps for positive vehicle traction
  • Adjustable runways to accommodate tread widths of a variety of medium-sized transit vehicles (rolling jack application requires fixed runways)
  • Approach ramps with heavy-duty steel roller wheels
  • Available with red or blue columns
  • Built-in runway rail system provides versatility to add convenience options like rolling jacks and oil drain pan (sold separately)

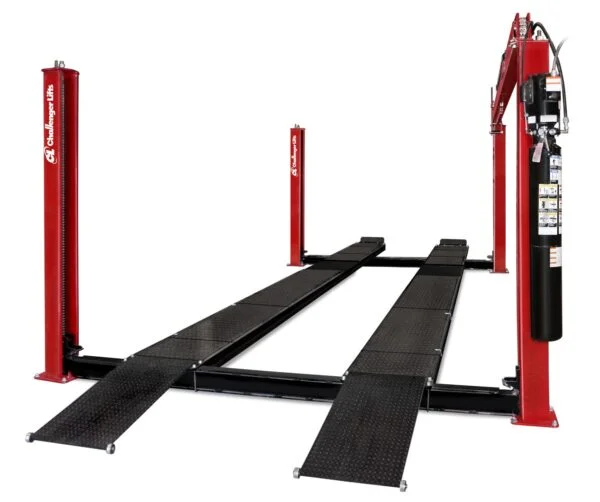

Model Number 44018 44018E 44018AR
Lifting Capacity 18,000 lbs. 18,000 lbs. 18,000 lbs.
Max Wheelbase 194” 230” 236”
Rise Height 78.75” 78.75” 83.375”
Overall Length 259” 292” 311.5”
Overall Width 138.125” 138.125” 141.5”
Inside Columns 121” 121” 122”
Between Columns 204” 240” 204”
Height Overall 102.5” 102.5” 102.5”
Height of Runways 7.25” 7.25” 11.875”
Width of Runways 22” 22” 22”
Width Between Runways 36″ – 54″ 36″ – 54″ 36″ – 54″
Min – Max 4 Wheel Align 98” – 206”
Max 2 Wheel Alignment 220”
Motor / Voltage 3HP, 208 – 230v Single Phase* 3HP, 208 – 230v Single Phase* 3HP, 208 – 230v Single Phase*
Amps 30 30 30
Speed of Rise 60 s 60 s 60 s
Colors Available Red, Blue Red, Blue Red, Blue



Product Downloads:

44018 Heavy Duty Product Brochure



Alignment Accessories
Part No. Description
RJ9A Air/hydraulic Rolling Jack – 9,000 lbs. capacity (AR models only)
RJ9S Air/hydraulic Rolling Jack – 9,000 lbs. capacity
10500 Powder Coated Turning Radius Gauges (44018AR)
10500SS Stainless Steel Turning Radius Gauges (44018AR)

Ramps
Part No. Description
44RK18 39″ Pivoting Ramp Kit (44018 only)
44RKE18 52″ Pivoting Ramp Kit, pivoting (44018AR only)

Productivity Accessories
Part No. Description
10267 32 Gallon Oil Drain Pan Kit (44018 & 44030 only)
44AK18 Internal air line kit for dual rolling jack operation (44018 only)
10267 32 Gallon Oil Drain Pan Kit (44018 & 44030 only)
10342 Hanging tool holder for oil drain pan 10267
10310 Air/electric workstation with filter/lubricator/regulator
3PH4P Power Unit Upgrade to 3-Phase
