15000 Challenger 2 Post Car Lift
General Information

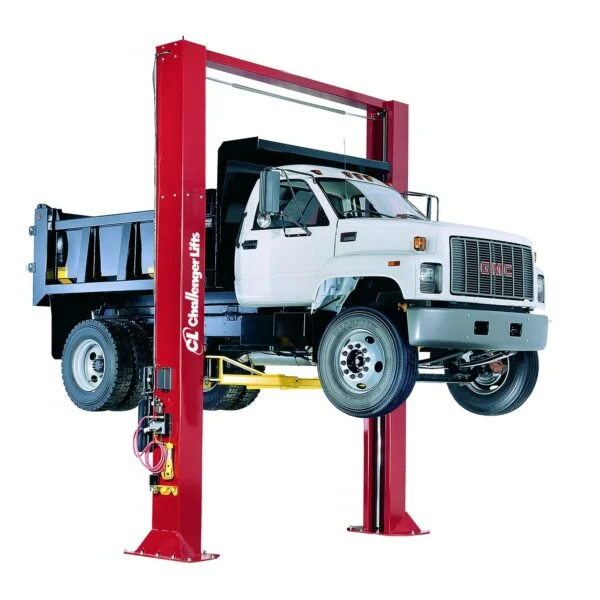

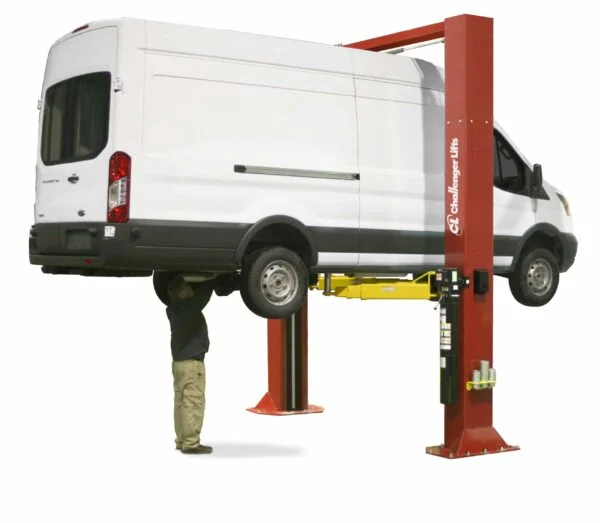

Challenger’s 15000 2-post lift can expand your fleet service capability to heavier vehicles such as trucks and medium-duty commercial vehicles. Featuring low-profile 2-stage front and 2-stage rear arms, the 15000 offers symmetric lifting capability. A single-point air actuated lock release system that disengages column locks simultaneously. Stack adapters come standard. 2’ column extensions are available for added versatility. We also offer the 15000 in a cargo van model designed to service high cube vans. The 15000-3S offers a low-profile adapter.
ALI/ETL certified.
Power Unit
2HP, 208v-230v
Single Phase
Quality
15,000 lb capacity
ALI/ETL certified
Models
3 and 2 stage
models available
Technology
Versymmetric® design
directSPOT™ technology
Product Information
- 15,000 lb. lift capacity
- Single point air actuated lock release allows technician to disengage both columns simultaneously
- Oversized 5″ diameter steel pulley and heavy duty 3/8″ cable reduces stress on equalization system and increases cable life
- 60″ lifting carriage design increases lift life
- Padded overhead shut off system prevents vehicle damage
- Premium powder coat finish provides long-lasting durability
- Plated arm restraints and arm pins inhibit rust and provide long-lasting durability
- Heavy-duty rubber screw pads accommodate a wide range of recommended vehicle lifting points
- Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage
| Model Number | 15000-3S | 15000 |
|---|---|---|
| Lifting Capacity | 15,000 lbs. | 15,000 lbs. |
| Lifting Configuration | Symmetric | Symmetric |
| Arms | HD 3-stage front/HD 3-stage rear | HD 2-stage front/HD 2-stage rear |
| Rise Height | 82” | 85” |
| Overall Height | 174” | 174” |
| 2’ Height Extension Available | ? | ? |
| Overall Width | 154.75” | 154.75” |
| Drive-Thru Clearance | 104.25” | 104.25” |
| Floor to Overhead Switch | 167” | 167” |
| Arm Reach (Min.) | 36.625” | 38.5” |
| Arm Reach (Max.) | 75” | 62” |
| Screw Pad Height | 5.5? – 10.875? | 6.625? – 8.5? |
| Inside Columns | 119.875” | 119.875” |
| Air Supply Required | 90-120 psi | 90-120 psi |
| Motor / Voltage | 2HP, 208v-230v, 60Hz, 1Ph | 2HP, 208v-230v, 60Hz, 1Ph |
| Speed of Rise | 49 s | 49 s |
| Ceiling Height Required | 14’ 8” | 14’ 8” |
| ALI/ETL Certified | ? | ? |

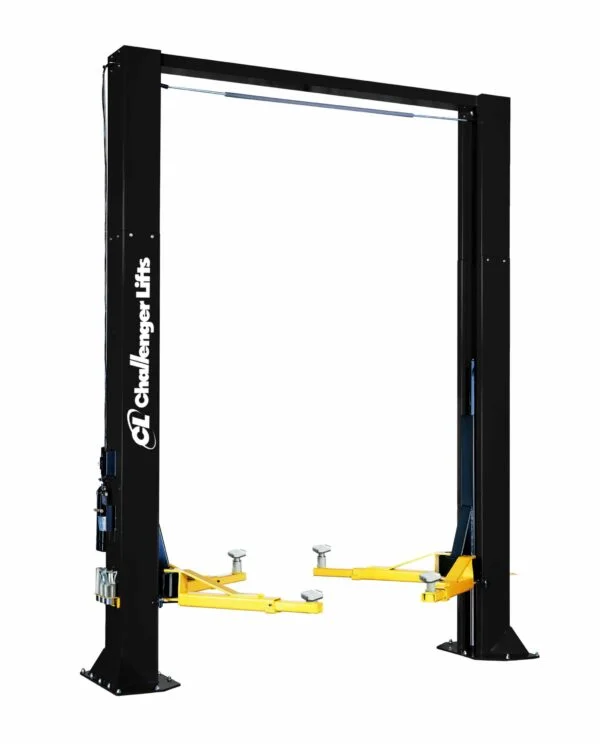

| Colors Available | Red, Blue, Black | Red, Blue, Black |
Product Downloads:

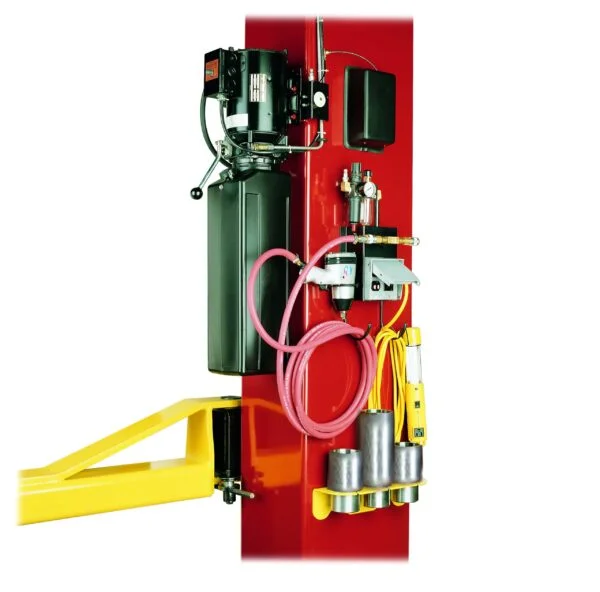

| Productivity Accessories | |
| Part No. | Description |
| 10317 | Reducer bushing kit |
| 10333 | Sprinter adapter kit – includes (2) pin adapters and (2) cradle adapters for 15000-3S series only |
| B10264A | Air/electric workstation with filter/lubricator/regulator |
| B99700 | Tire Tool Manager Work Station with filter/lubricator/regulator |
| Power Upgrades | |
| Part No. | Description |
| 3PH217 | Power Unit Upgrade to 3-Phase – 208V |
| 3PH239 | Power Unit Upgrade to 3-Phase – 230V |
| 3PH469 | Power Unit Upgrade to 3-Phase – 460V |
Source: Challenger Lifts
