BEST AMERICAN MADE CAR LIFTS FOR HOME GARAGES IN 2019

by | Apr 5, 2019 | Uncategorized

BEST AMERICAN MADE CAR LIFT FOR HOME GARAGES in 2019

M-1 (maximumOne) single post car lift:

In 1999 American Custom Lifts designed the first and only American made single post car lift designed for storing two vehicles in the parking space of one. Our lifts are manufactured by our factory ACL Fabrication https://aclfab.com/. Introducing the MaximumOne Single Post Car Lift. We have distributors throughout the United States who offer our American made single post lift. To date, we have over 4,500 installations throughout the country and Internationally. No other company can say the same.

  • Superior Display Capabilities: Out-of-the-way single post, open tracks for easy underbody viewing
  • Multiple Locking Positions
  • Positive Locking Mechanism
  • Single-Point Electric Lock Release
  • Sturdy 4,500 and 6,500 lb. Lifting Capacity
  • Adjustable Track Width
  • Easy Installation
  • Made in USA

M-1 Single Post Car Lift

singlepost car lift

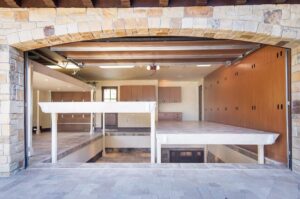

PhantomPark:

  • The PhantomPark® is the newest and most innovative 2-deck underground parking system in the world and it is made in America. The deck structure and components are completely concealed below ground so there is no indication that a lift (or second car) is present when lowered. PhantomPark® is a unique breed of lift for the uncompromising property owner. Reach out to one of our project consultants for more information.
  • Unobtrusive and secure – the lift and lower vehicle are completely concealed
  • Aesthetically pleasing – canopy surface can be tiled to match surroundings
  • Multiple units can be installed side-by-side for use in condo’s, offices etc.
  • Ideal for low-ceiling applications – use as ‘vertical tandem parking’ to save space
  • Safe, easy to operate
  • Made in USA

. https://aclifts.com/lifts/phantompark-subterranean-parking-lift/

phantompark in ground car lift

PhantomPark® In Ground Car Lift

BuddyUP BU-9000:

Do more with the Buddy Up 4 post lift. The platform provides 9000 lb. of total lifting capacity for effortlessly lifting two vehicles at once. The BuddyUp is the ONLY American made double-wide car lift. This model has proven to be the post popular design home garage car storage lift amongst car enthusiast with limited garage space for storing two vehicles side by side.  No other double-wide car lift compares no other double-wde car lift ever will.

Buddy Up 4 Post Car Lift

buddy up four post



PO602-ACC6 Parking Lift:

If you’re in the market for a two post parking lift whether it’s for a residential home garage or a commercial parking lift, you need to look no further. The ACC6 two post parking lift is the ONLY American made two post car lift on the market today. This is a beast and a lift that will last a life time!  It has a 6,000 lb. lifting capacity, and takes up vary little valuable parking space. American Custom Lifts specializes in providing the latest parking lift technology based on proven mechanical and structural engineering.

  • MADE IN THE USA

P602-ACC6 2 Post Parking Lift

commercial parking lift



ParkKing:

A one of a kind design. No other four post car lift on the market today provides the attractive rounded columns. Advanced geometric design provides additional strength and stability without sacrificing space.

  • Superior quality and made here in the USA at our factory (ACL Fabrication) in Burleson TX.
  • Aesthetically pleasing and unique rounded columns
  • Multiple Locking Positions. Ten useful locking heights.
  • Easy to see positive locking mechanism. Enclosed locks are in full view for maximum safety.
  • Non-sag diamond plate steel runways. Easy access for oil changes and underbody work. Solid platform optional.
  • Single point lock release. Convenient push-button operation.
  • 3-1/2″ diameter cylinder with four 14,500 lb aircraft quality cables. Smaller cylinders are over-worked which may cause leaks.
  • Low profile polished aluminum drive on ramps. Rust proof drip pans to protect the bottom vehicles against oil drips or leaks from the car above.
  • Optional easy glide jack tray for use with bottleneck jacks to perform wheel and brake work.
  • Made is USA
  • https://aclifts.com/lifts/park-king-4-post-car-lift/

The Titan 4 Post Car Lift is the most economical way to instantly double your parking capacity! SUV model also available (80″ lifting height). Easy to install and virtually maintenance-free.

  • Titan:
  • Superior quality and made here in the USA at our factory (ACL Fabrication) in Burleson TX.
  • Innovated outside carriage design to offer additional stability.
  • Multiple Locking Positions. Ten useful locking heights.
  • Easy to see positive locking mechanism. Enclosed locks are in full view for maximum safety.
  • Non-sag diamond plate steel runways. Easy access for oil changes and underbody work. Solid platform optional.
  • Single point lock release. Convenient push-button operation.
  • 3-1/2″ diameter cylinder with four 14,500 lb aircraft quality cables. Smaller cylinders are over-worked which may cause leaks.
  • Low profile polished aluminum drive on ramps. Rust proof drip pans to protect the bottom vehicles against oil drips or leaks from the car above.
  • Optional easy glide jack tray for use with bottleneck jacks to perform wheel and brake work.
  • Made in USA

https://aclifts.com/lifts/titan-4-post-car-lift/



Why are American Custom Lifts “American made” Four-Post surface-mounted car lifts better than all other products on the market?

10 reasons Why→

  1. Other lift companies use brass or plastic sheaves, which tend to wear out over time and are not designed for continuous cycles per day. Our 7K four post designs use a commercial grade bearingin pulleys that are designed for many cycles per day as used in heavy duty truck lifts.
  2. Our lifts use a 1.5″ x 1.5″ x 2 7/8″ oil based urethane glide block. This provides a smooth up and down platform operation. Many of the other lifts require you to grease the inside or outside of the columns over a period of time. Other lifts platforms will tend to jump or skip as they’re being raised or lowered. This is due to using inexpensive plastic glide blocks.
  3. Our lifts use an aircraft quality cable, four attached to each column, tested at 14,500 lbs each.
  4. Other lift companies base-plates are only 3/8″ gauge steel maximum which sometimes warp when being welded to the columns, thus causing the lift to sway when free standing. Our four post design base-plates are made with 1/2″ gauge American steel. Our lift will rest flush on the foundation and will not require anchoring.
  5. Other lift companies tracks (runways) have square cut edges which can be dangerous if brushed against. American Custom Lift tracks (runways) are made with a non-sag diamond plate steel that have been rounded on the corners. It is also aesthetically more pleasing.
  6. Our lifts provide an extra safety measure that provides peace of mind. Most other lift companies offer no safety in the case of a glide block bolt coming loose. All of our 7K and 9K four post lift provide extra safety precautions by welding a safety dowel to the under carriage where the glide blocks are bolted at the end of each cross-rail If a glide block bolt were to come loose, there would be no risk of the glide block slipping.
  7. Many of the four post parking lifts on the market today use a 3″ diameter cylinder. When overworked, they will tend to leak. Our parking lift models us a 3 1/2″ diameter cylinder.
  8. Warranty: We offer a lifetime warranty on our structure, five yrs. mechanical and 1 yr. parts & electrical.Ask the other lift companies what their warranty covers. You won’t be impressed.
  9. Our lifts are all powder-coated.Available lift colors are black, blue and red. Custom colors are also available for an additional cost.
  10. Our lifts are AMERICAN MADE.90% of the lift companies today are selling imported lifts from China, Korea and Turkey. These lifts look like toys when standing side by side to one of our heavy duty American made lifts. Surprisingly, many of the lift manufacturers are now importing their steel, cylinders and power units and then assembling the lifts at their facility and claiming “American made”.
    Don’t be fooled when they claim American made. We’ll put it in writing!
